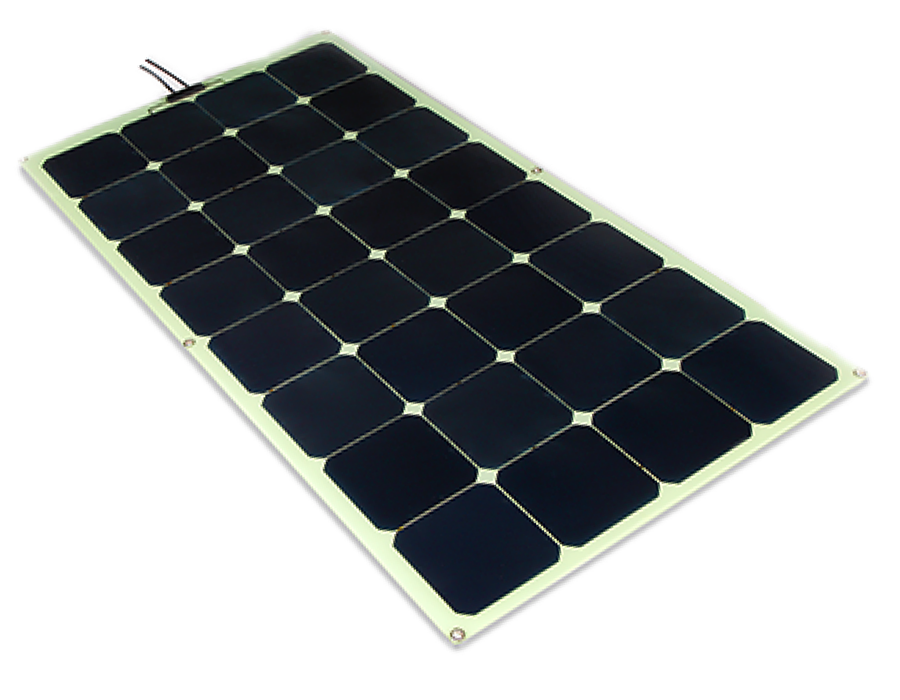

Specifically designed and manufactured for RV and Marine applications, RUGGEDFLEX RF-09812 (98-watt / 12-volts) delivers maximum durability and reliability in a semi-flexible, ultra-thin and frameless solar module. Originally created for military-grade use and produced with our industrial strength encapsulation process known as MONOLITHIC-CASTING. These solar modules have no lamination, no glass parts and are totally waterproof: the panel, terminals, wires, and MC4 connectors are all rated at IP-68. When properly installed on a rigid surface with a less than 30 degrees of curvature, such as the roof of an RV or deck of a boat, RUGGEDFLEX modules can deliver years of totally clean and quite power. With basic maintenance, these modules can perform well beyond the 5-years Manufacturer's Limited Warranty.
Don't settle for conventional glass solar panels with bulky metal frames and heavy racking systems. These were never intended for use on mobile equipment.
Don't be frustrated by frameless laminated solar panels claiming to be "outdoor quality". No laminated panel with an exposed edge will ever stand up to the elements 24 / 7 / 365 because adhesive sheets are not waterproof and were never intended to be left unprotected by a frame.
RUGGED solar modules are designed to be frameless, glassless, thin, light, and almost indestructible in mobile applications. Our manufacturing process uses a proprietary MONOLITHIC-CASTING process to fully protect solar cells and electronics within an industrial strength polymer that is optically clear, will not yellow or crack for more than ten years, and will stand up to the vibration, heat cycles, saltwater spray, and inevitable blunt forces associated with outdoor, mobile applications such as on RVs and Boats. This is precisely what the RUGGEDFLEX was designed for.
When you want the best performance and reliability from your RV or Marine solar modules, choose RUGGEDFLEX.
|Typical Electrical Data at STC: 25° C, 1000 W/m2 and AM 1.5|
|Voltage at Maximum Power (Vmp/Vmpp)||18V|
|Current at Maximum Power (Imp/Impp)||5.55A|
|Open Circuit Voltage (Voc)||19.8V|
|Short Circuit Current (Isc)||6.11 A|
|Power Temp Coefficient||–0.30%/° C|
|Voltage Temp Coefficient||–55.8 mV/° C|
|Current Temp Coefficient||3.5 mA/° C|
|Number of cells||32 cells|
|Cell Efficiency (%)||23.30%|
|Module Efficiency (%)||16.78%|
|Series Fuse Rating||15A|
|Panel Description||98W 18V PANEL|
|Solar Panel Type||Mono-cSi, Flexible|
|Weight in Kg||5|
|Certification||IP68 & ROHS|
|Manufacturer Warranty||5 YEARS|
|Performance Warranty||20 YEARS|
|Country of Origin||Made in India|
|Max. System Voltage|
|RUGGEDSOLAR® RUGGEDFLEX™ modules are to be used in battery charging applications, e.g. 12V or 24V batteries.|
|NOTE: As per various electrical codes and regulations, solar panels operating at system voltages > 50VDC must be UL certified for the US and IEC certified for other countries. RUGGEDSOLAR® RUGGEDFLEX ™ is pending UL and IEC certification.|
